Hymer 2241 / 2240 Bridging Unit / Step Over Unit
- Step width optionally 600, 800 or 1,000 mm.
- For access ways to machines or machinery systems, a step width of 600 mm is only permitted in exceptional cases.
- Aluminium profile steps 250 mm deep, alternatively aluminium or steel grating steps 240 mm deep at additional cost.
- As standard with one handrail, mounted on the left, second handrail available at extra cost.
- For access paths to machines or machinery systems, handrails on both sides are mandatory if the distance to the object is larger than 120 mm.
- 1,100 mm high guardrail on the platform, with knee and foot rail.
- Platform length 500 mm. Extension for aluminium profile steps and grating platforms in steps of 500 mm. Where aluminium chequer plate is used intermediate sizes are possible.
- Platform lengths restricted in cantilever version.
- Standard design with floor bracket at bottom, mandatory bolting to the floor.
- Intermediate sizes at price of next highest number of steps.
- Permissible load of step 150 kg, permissible load total 150 kg/m² (max. 300 kg).
- For use only by one person.
- Not available on stock, production on order, therefore, no exchange possible.
- Shipped in subassemblies pre-assembled in the factory.
Product overview
Available in 45/60 degree inclines. 600-1000mm width and up to 2.5m platform height.
You can customise where your handrails are placed, whether you need a longer steps on one side – the possibilities are endless.
Clear height 120mm lower than platform height
Product Options

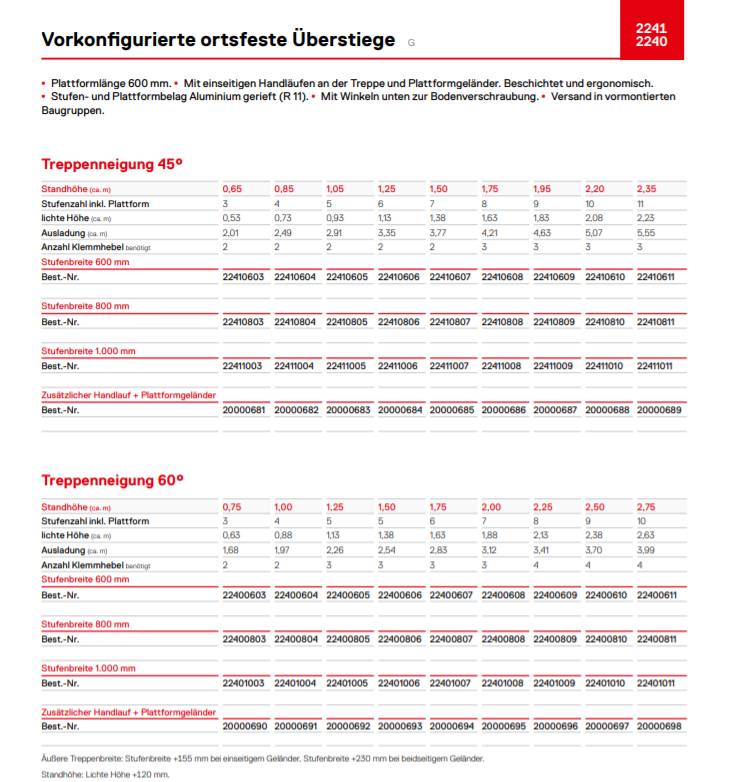

| Code Number | Platform Width mm | Step Angle Degrees | Platform Height m | Number of Treads |
| 22410603 | 600 | 45 | 0.65 | 3 |
| 22410803 | 800 | 45 | 0.65 | 3 |
| 22411003 | 100 | 45 | 0.65 | 3 |
| 22410604 | 600 | 45 | 0.85 | 4 |
| 22410804 | 800 | 45 | 0.85 | 4 |
| 22411004 | 1000 | 45 | 0.85 | 4 |
| 22410605 | 600 | 45 | 1.05 | 5 |
| 22410805 | 800 | 45 | 1.05 | 5 |
| 22411005 | 1000 | 45 | 1.05 | 5 |
| 22410606 | 600 | 45 | 1.25 | 6 |
| 22410806 | 800 | 45 | 1.25 | 6 |
| 22411006 | 1000 | 45 | 1.25 | 6 |
| 22410607 | 600 | 45 | 1.50 | 7 |
| 22410807 | 800 | 45 | 1.50 | 7 |
| 22411007 | 1000 | 45 | 1.50 | 7 |
| 22410608 | 600 | 45 | 1.75 | 8 |
| 22410808 | 800 | 45 | 1.75 | 8 |
| 22411008 | 1000 | 45 | 1.75 | 8 |
| 22410609 | 600 | 45 | 1.95 | 9 |
| 22410809 | 800 | 45 | 1.95 | 9 |
| 22411009 | 1000 | 45 | 1.95 | 9 |
| 22410610 | 600 | 45 | 2.20 | 10 |
| 22410810 | 800 | 45 | 2.20 | 10 |
| 22411010 | 1000 | 45 | 2.20 | 10 |
| 22410611 | 600 | 45 | 2.35 | 11 |
| 22410811 | 800 | 45 | 2.35 | 11 |
| 22411011 | 1000 | 45 | 2.35 | 11 |
Resources
| Title | Type | Size/ dimensions | View | Download |
| Hymer Configurator Catalogue | Catalogues | 922.1KB | View | Download |
| Hymer Bridging Step Manual | Manuals | 1.1MB | View | Download |
| 2241, 2240 Images | Hi-Res Images | 2.3MB | N/A | Download |
