Hymer 2231 / 2230 Mobile Access Platform
- Step width optionally 600, 800 or 1,000 mm.
- Aluminium profile steps 200 mm deep, alternatively aluminium or steel grating steps 240 mm deep at additional cost.
- Handrails on both sides as a standard.
- 1,100 mm high guardrail on platform with knee and foot rail.
- Platform length 500 mm. Extension for aluminium profile steps and grating platforms in steps of 500 mm. Where aluminium chequer plate is used intermediate sizes are possible.
- Front or side exit on request.
- Chassis on step section = Ø 125 mm diameter castors with brakes, chassis on support section = mobile cross-beam with Ø 160 mm fixed castor.
- Low play castor bearings, therefore extremely stable.
- Permissible load total 150 kg.
- For use only by one person.
- Not available on stock, production on order, therefore, no exchange possible.
- Shipped in subassemblies pre-assembled in the factory.
Product overview
Available in 45/60 degree inclines. 600-1000mm width and up to 4m platform height.
You can customise where your handrails are placed, whether you need gates/chains for access on end faces and even add cantilevers! The possibilities are endless.
Product Options

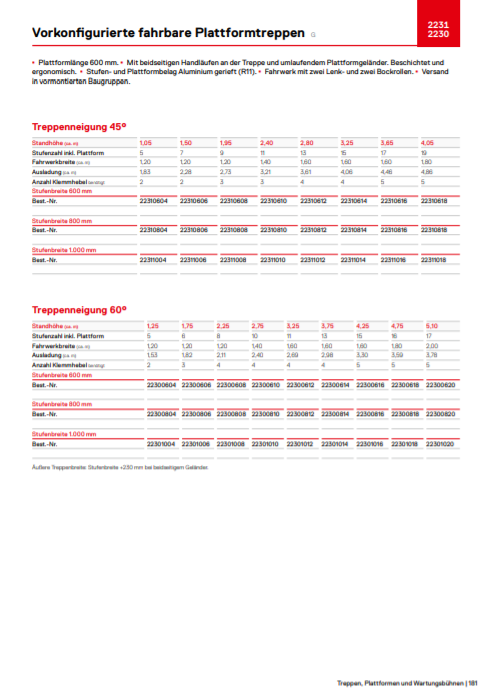

| Code Number | Platform Width mm | Steps Angle degrees | Platform Height m | Number Of Treads |
| 22310604 | 600 | 45 | 1.05 | 5 |
| 22310804 | 800 | 45 | 1.05 | 5 |
| 22311004 | 1000 | 45 | 1.05 | 5 |
| 22310606 | 600 | 45 | 1.50 | 7 |
| 22310806 | 800 | 45 | 1.50 | 7 |
| 22311006 | 1000 | 45 | 1.50 | 7 |
| 22310608 | 600 | 45 | 1.95 | 9 |
| 22310808 | 800 | 45 | 1.95 | 9 |
| 22311008 | 1000 | 45 | 1.95 | 9 |
| 22310610 | 600 | 45 | 2.40 | 11 |
| 22310810 | 800 | 45 | 2.40 | 11 |
| 22311010 | 1000 | 45 | 2.40 | 11 |
| 22310612 | 600 | 45 | 2.80 | 13 |
| 22310812 | 800 | 45 | 2.80 | 13 |
| 22311012 | 1000 | 45 | 2.80 | 13 |
| 22310614 | 600 | 45 | 3.25 | 15 |
| 22310814 | 800 | 45 | 3.25 | 15 |
| 22311014 | 1000 | 45 | 3.25 | 15 |
| 22310616 | 600 | 45 | 3.65 | 17 |
| 22310816 | 800 | 45 | 3.65 | 17 |
| 22311016 | 1000 | 45 | 3.65 | 17 |
| 22310618 | 600 | 45 | 4.05 | 19 |
| 22310818 | 800 | 45 | 4.05 | 19 |
| 22311018 | 1000 | 45 | 4.05 | 19 |
Resources
| Title | Type | Size/ dimensions | View | Download |
| Hymer Configurator Catalogue | Catalogues | 922.1KB | View | Download |
| Hymer Configurator Platform Step Manual | Manuals | 2.6MB | View | Download |
| 2231, 2230 Images | Hi-Res Images | 2.7MB | N/A | Download |
