Hymer 2221 / 2220 Stairway with platform
- Step width optionally 600, 800 or 1,000 mm.
- For access ways to machines or machinery systems, a step width of 600 mm is only permitted in exceptional cases.
- Aluminium profile steps 200 mm deep, alternatively aluminium or steel grating steps 240 mm deep at additional cost.
- As standard with one handrail, mounted on the left, second handrail available at extra cost.
- For access paths to machines or machinery systems, handrails on both sides are mandatory if the distance to the object is larger than 120 mm.
- 1,100 mm high guardrail on the platform, with knee and foot rail.
- Platform length 500 mm, extension in steps of 500 mm for aluminium profile steps and grating platforms. Where aluminium chequer plate is used intermediate sizes are possible. Platform lengths are limited to 2,500 mm in cantilever version.
- Standard design with 2 wall mounting brackets at top and floor brackets at bottom, on request at top with suspension hook or bearing bracket at additional cost.
- Triangular brackets must be used for side wall mounting , platform exit optionally on the left or on the right.
- Intermediate sizes at price of next highest number of steps.
- Permissible load of step 150 kg, permissible load total 150 kg/m² (max. 300 kg).
- For use only by one person.
- Not available on stock, production on order, therefore, no exchange possible.
- Shipped in subassemblies pre-assembled in the factory.
Product overview
Available from 35 degree to 75 degree angle. 600-1000mm width and up to 4.1m length.
You can customise the handrails and choose how the stairs are connected to the ground and exit point. The exit platform is available up to 2m long!
Resources
| Title | Type | Size/ dimensions | View | Download |

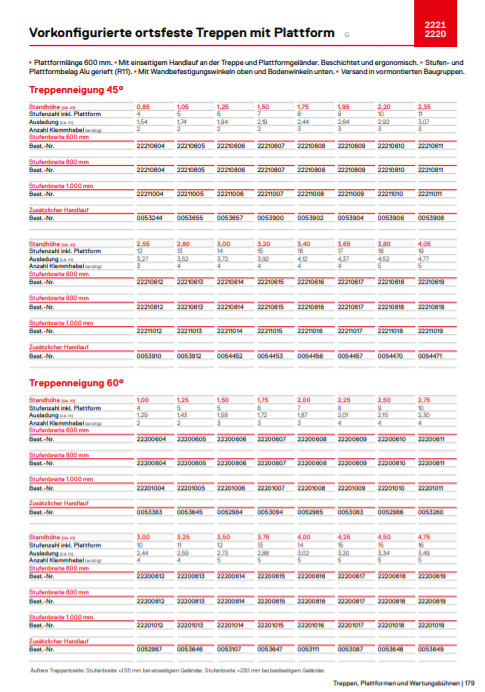

| Hymer Configurator Catalogue | Catalogues | 922.1KB | View | Download |
| 2220, 2221 Images | Hi-Res Images | 1.7MB | N/A | Download |
